B0S as a residential monitoring board circuit and parameters

A. Wiring for motherboard without mod2 communication plug-in

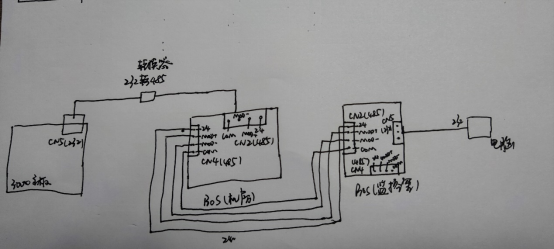

1. Wiring for single monitoring

2. Single unit related parameters

Mainboard parameters: Fd-00=1 (baud rate 38400), Fd-02=1 (integrated machine address)

B0S (machine room) parameters: F04=4, F05=0, F07=0 (mainboard level 1 password, no password 0)

B0S (monitoring room) parameters: F05=2, F06=1 (number of monitored elevators)

Note: B0S needs to have 3 flashing lights to indicate normal communication

B0S (machine room): RUN-power on normally, mod-communicate with mainboard (mainboard 232 flashes), mod4-communicate with B0S (monitoring room);

B0S (monitoring room): RUN-power on normally, mod-communicate with B0S (machine room), 232-communicate with computer

Remarks: 1 elevator is equipped with 2 blocks. 2 elevators are equipped with 3 blocks. N+1
